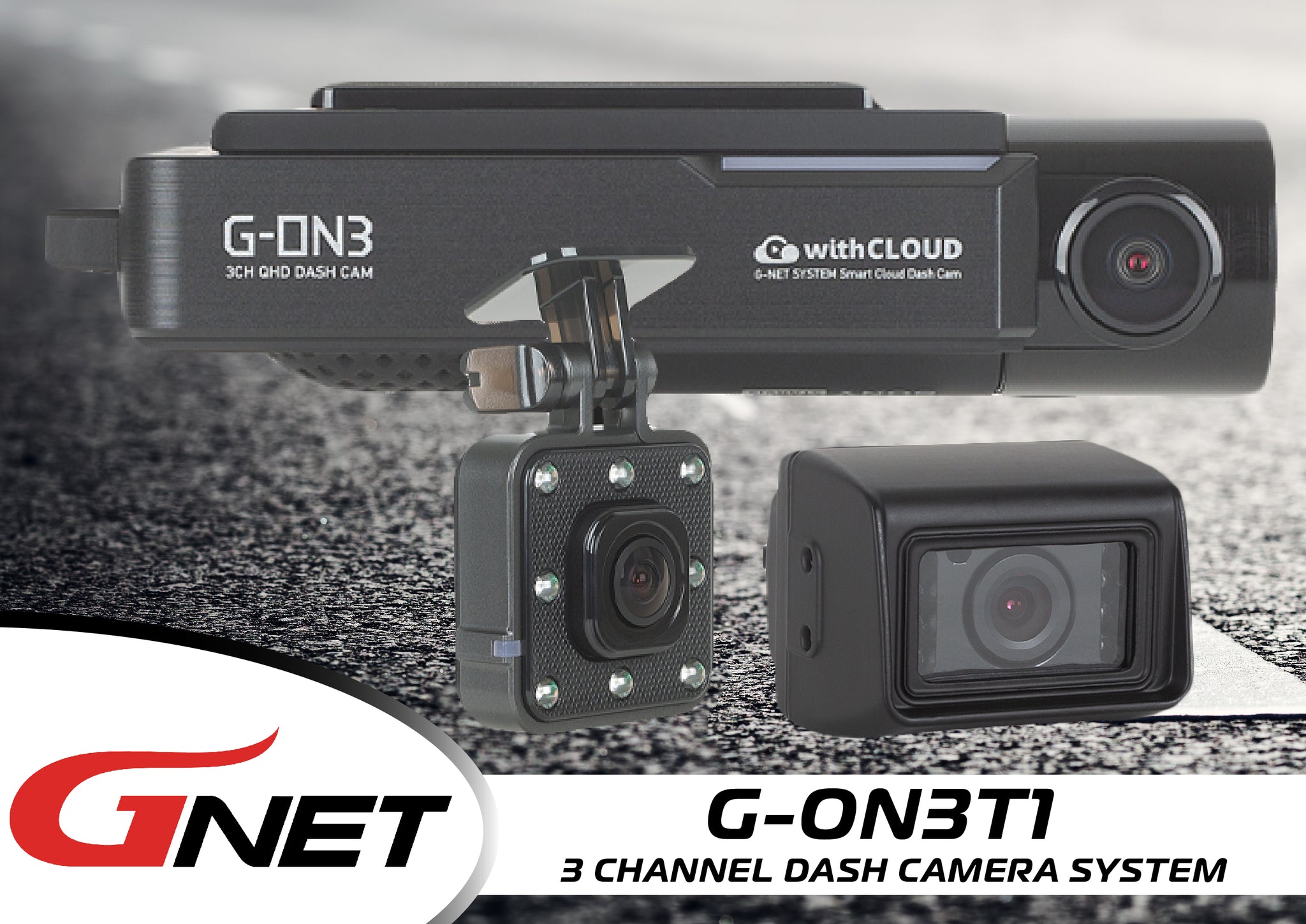

G-ON3T1


Image SensorSONY Starvis (HDR)
Audio inputBuilt-in Microphone
Video CompressionH.265
Audio CompressionADPCM
ResolutionFront : QHD (2560 X 1440) / Rear, Interior, Exterior: FHD (1920 X 1080)
Frame RateAll cameras : Max. 30 FPS
3G/4G/Router (Optional)Connect to withCLOUD™ via 3G/ 4G/ Router telecommunication
Wi-Fi (Optional)Connect to GNET Smart phone application via Wi-fi® dongle
G-SensorEvent recording by External Shock
SpeakerOperation Status alarm / Voice guidance
External GPSSynched with Google map, Keep track of location and Speed
Angle Of ViewFront : 140˚, Interior : 180˚, Rear & Exterior: 140˚
ViewerWindows XP/7/8/10, Support 32Bit / 64Bit,  Synchronizing Google map with PC viewer is supported over Windows7 and explorer 10 as per Google' s policy.
PowerDC 12V - 24V
Acceptable current value of the supplied fuse3A
Operation Temperature-10℃ ~ 70℃
Humidity10~95%
Dimension(WxHxD, mm)Front : 116x56x32, Interior :48x73x26, Rear: 44x38x28 Exterior: 45x45x35

H.265

Video codec (HEVC)

*HEVC (High Efficiency Video Coding)

H.265 compression rate is up to 2 times higher than H.264.

gnet-h264-FOR-WEB

WIDE VIEWING ANGLE

Optimal viewing angle without distortion

Front camera: 140° / Rear camera: 140° / Interior IR camera(driver, passenger): 180° / Option - Exterior IR, IP69K camera: 140°

gon3_viewing_angle

G-NET APP

User-friendly GUI

User convenience has been further upgraded for anyone to operate conveniently

gnet_app_3
gnet_app_1
gnet_app_2
User-focused
Firmware Upgrade
User-focused
Firmware Upgrade
User-focused
Firmware Upgrade
User-focused
Firmware Upgrade
User-focused
Firmware Upgrade
Using the Smartphone APP,
you can upgrade the firmware
and play video as well as
configure various settings

SPECIFICATION

gon3_specs
